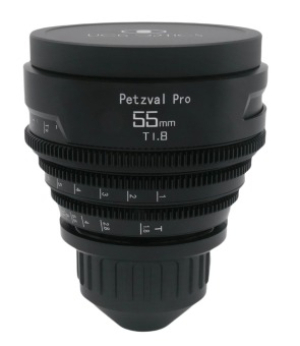

UCG Optics Petzval Pro 55mm T1.8
Summary
The Petzval Pro rehousing project represents a sophisticated evolution of the original 1st gen. Petzval lens, which was reimagined in 2022, and serves as an enhancement over the 2nd gen. Petzval Plus. This latest iteration not only preserves the iconic design elements characteristic of its predecessor but also upholds the exceptional housing standards established by UCG Optics MKii, akin to those found in the Petzval Plus version. It is meticulously equipped with a CAM focus system and boasts a strikingly deep black finish that sets it apart.
Tech Specs
| Manufacturer | UCG Optics |
| Series | Rehoused Prime |
| Model | Petzval Pro |
| Focal Length | 55mm |
| Max Aperture | T1.8 |
| Min Aperture | T16 |
| Format | FF |
| Image Circle | - |
| Minimum Focus | 1ft 6in |
| Focus Rotation | ° |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | none |
| Front Diameter | 95mm |
| Filter Thread | - |
| Focus/Zoom Rod | none |
| Native Mount | PL |
| Data Protocol | none |
| Length | 135mm |
| Weight | 1kg |
| Body Telescope | none |
| Body Material | aluminum |
| Focus Drive | manual |
| Iris Drive | manual |
| Zoom Drive | none |
History
Country of Origin: China
Release Date:
Launch Price:
Design Revisions:
Service
Notes
Media
