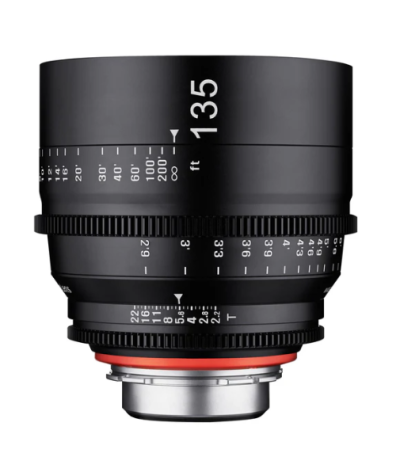

Rokinon XEEN Telephoto 135mm T2.2

Summary

In order of introduction, the XEEN by Rokinon 135mm T2.2 Lens is the 6th of the XEEN Professional Cine Lens series. Like all of its siblings, the 135mm is built specifically for use as a cinema lens with the benefit of an image circle that covers a full-frame sensor. With an all metal design that’s lighter weight than the competition, it offers spectacular 6K image quality and a full frame image circle plus great low light performance The 135mm focal length is ideal for portrait shots by allowing working at a distance that avoids distortion. Its narrow angle of view and large aperture can also combine to focus in on the subject with a shallow depth of field to further isolates the foreground from the background for great creative control. An internal focus design allows focusing to 2.6 ft (0.6m) and prevents it from changing in length while focusing to minimize breathing. The XEEN 135mm T2.2 maintains the important characteristics of the system including a uniform length and 114mm non-rotating front diameter for the easy use of matte boxes, full frame coverage, and an 11 blade diaphragm for pleasing bokeh. It is available in mounts that are changeable to PL, Canon, Nikon, Sony E, and MFT. This fast telephoto utilizes our X-Coating Technology to ensure high quality footage with clear contrast, impressive colors, and a cinematic look even under less than optimal lighting conditions. XEEN by Rokinon lens mechanics and optics are manufactured and precision assembled in Korea utilizing cutting edge techniques and are backed by a Three Year Warranty, the longest in the industry.

Tech Specs

Manufacturer Rokinon
Series Xeen
Model -
Focal Length 135mm
Max Aperture T2.2
Min Aperture T22
Format Full Frame
Image Circle 43.3mm
Minimum Focus 33 in.
Focus Rotation -
Iris Blades 11
Optical Design -
Squeeze n/a
Front Diameter 114mm
Filter Thread -
Focus/Zoom Rod -
Native Mount PL, EF,F, E, M4/3
Data Protocol n/a
Length 4.8 in
Weight 1407g
Body Telescope -
Body Material Aluminum
Focus Drive Manual
Iris Drive Manual
Zoom Drive n/a

History

Country of Origin: South Korea
Release Date: -
Launch Price: -
Design Revisions:

Service

Notes

Media
