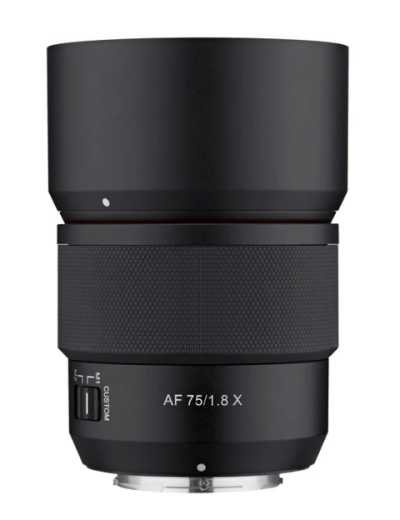

Rokinon Compact Auto Focus 75mm f/1.8

Summary

The feature set and overall performance of the Rokinon 75mm f/1.8 AF Compact Telephoto lens for APS-C Fuji X mount cameras are unmatched by any in its class. Compact Size & Light Weight The AF 75mm f/1.8 X is the smallest (69.3mm/2.7in length) and lightest (257g/26.5oz weight) autofocus telephoto lens designed for Fuji X-mount users. Its compact size and lightweight maximize the portability and usability and it's a great match to compact Fujifilm mirrorless cameras. Excellent Resolution in All Areas of the Image The 2 HR (High Refractive) and 3 ED (Extra-Low Dispersion) glass elements of this new AF 75mm f/1.8 X provide a stunning contrast and resolution in all areas of the image. Rokinon's advanced coating technology maintains excellent image sharpness and clear image even in poor lighting conditions. Impressive Background with Refined and Beautiful Bokeh The f/1.8 maximum aperture of this new AF 75mm f/1.8 X lens provides an extremely narrow depth of field expression and amazing out-of-focus images. A 9-blade circular aperture design creates a beautifully blurred background at a narrow depth of field. Its smooth bokeh and blurred background can make subjects stand out in images with deep dimensional impact. Fast and Accurate Auto Focus The AF 75mm f/1.8 X tracks the subject accurately and quickly, whilst the AF operates quietly and smoothly in video recording mode. In particular, it is advantageous for video shooting as this compact and lightweight lens is suitable for use on a gimbal, in combination with the small and light Fujifilm X series cameras. Custom Switch Mode 1 & 2 The AF 75mm f/1.8 X includes a new special feature, the “Preset Aperture Control” function on the “Custom Switch - Mode 2”. You can control the depth of field more smoothly without noise and vibration when you record videos in AF mode. On the “Custom Switch - Mode 1”, it operates with the “Focus Control” function in MF shooting mode, so you can adjust the focus precisely, by rotating the focus ring. More functions will be added through firmware updates in the future and you can check the detailed information on the official website. Modern Design with Weather Sealing The AF 75mm f/1.8 X has adopted the Rokinon AF 2nd generation design such as a rubberized micro-patterned focus ring, hidden red ring, and matte finish, also weather sealing applied to 5 different spots. ※ AF 75mm f/1.8 X Compatibility Notice Rokinon AF 75mm f/1.8 X is optimized for Fujifilm cameras featuring the X-Trans sensor in order to provide stable AF performance.

Tech Specs

Manufacturer Rokinon
Series Compact Auto Focus
Model -
Focal Length 75mm
Max Aperture f/1.8
Min Aperture f/22
Format APS-C
Image Circle -
Minimum Focus 30 in.
Focus Rotation -
Iris Blades 9
Optical Design 10/9
Squeeze n/a
Front Diameter 65mm
Filter Thread 58mm
Focus/Zoom Rod -
Native Mount E
Data Protocol n/a
Length 2.7 in.
Weight 230 g
Body Telescope n/a
Body Material Aluminum
Focus Drive Linear STM
Iris Drive Manual
Zoom Drive n/a

History

Country of Origin: South Korea
Release Date: -
Launch Price: -
Design Revisions:
