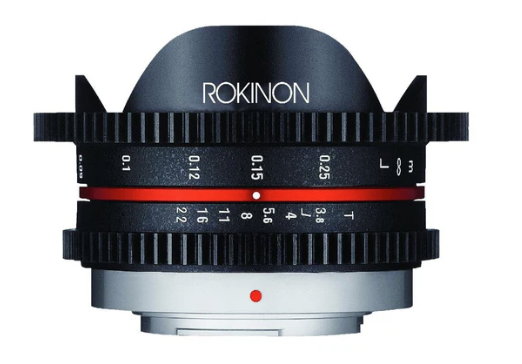

Rokinon Cine Compact Fisheye 7.5mm T3.8

Summary

See the world from a different perspective with our compact 7.5mm Fisheye that has been designed specifically for Micro Four Thirds and optimized for digital cinematography. It provides a 180° diagonal ultra-wide view with curvature distinctive of a Fisheye lens but allows capturing close distance sport/action shots, interiors, landscapes, panoramas, and other situations where an ultra-wide field of view is required. Since the curved perspective effect increases the closer you get to the lens, its close focusing capability of less than four inches can take full advantage of the fisheye effect for dramatic results. Features designed for digital cinematography include a de-clicked aperture control for smooth, seamless and silent adjustment, calibration in T-stops for accurate and consistent exposures, and geared focusing and aperture rings for use with follow focus devices. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operate on the side of the camera. To produce sharper images, one aspherical and three extra-low dispersion (ED) lens elements are employed to reduce chromatic aberration and distortion. In addition to a built-in petal lens hood, Ultra Multi-Coating (UMC) is utilized to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and greater contrast.

Tech Specs

Manufacturer Rokinon
Series Cine
Model Fisheye
Focal Length 7.5mm
Max Aperture T3.8
Min Aperture T22
Format APS-C
Image Circle -
Minimum Focus 3.5in
Focus Rotation -
Iris Blades -
Optical Design 9/7
Squeeze -
Front Diameter 73.6mm
Filter Thread -
Focus/Zoom Rod -
Native Mount MFT
Data Protocol -
Length 48.3mm
Weight 195g
Body Telescope -
Body Material -
Focus Drive -
Iris Drive -
Zoom Drive -

History

Country of Origin: South Korea
Release Date: -
Launch Price: -
Design Revisions:

Service

Notes

Media
