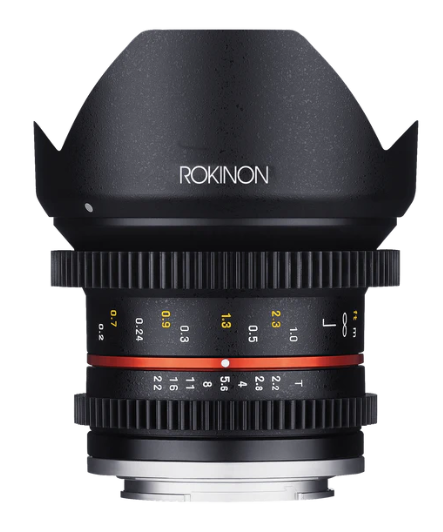

Rokinon Cine Compact High Speed Wide Angle 12mm T2.2

Summary

The Rokinon 12mm T2.2 Cine Lens is a wide-angle lens optimized for digital cinematography. The lens produces an image circle that will cover APS-C sized sensors or smaller. For use with a follow focus unit, the focus and aperture rings feature industry-standard 0.8 pitch gearing. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera. In Canon M mount with an angle of view of 95.7°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. It's fast maximum aperture of T2.2 also makes the lens suitable for shooting low-light conditions. Three extra-low dispersion elements and two aspherical elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, a Nano Coating System (NCS) has been applied to the lens elements in order to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery. A bayonet-mount lens hood and lens pouch come included with the lens.

Tech Specs

Manufacturer Rokinon
Series Cine
Model High Speed Wide Angle
Focal Length 12mm
Max Aperture T2.2
Min Aperture T22
Format APS-C
Image Circle -
Minimum Focus 0.65ft
Focus Rotation -
Iris Blades -
Optical Design 12/10
Squeeze -
Front Diameter 73.6mm
Filter Thread 67mm
Focus/Zoom Rod -
Native Mount M, X, NX, E, MFT
Data Protocol -
Length 51.6-59.5mm
Weight 240-265g
Body Telescope -
Body Material -
Focus Drive -
Iris Drive -
Zoom Drive -

History

Country of Origin: South Korea
Release Date: -
Launch Price: -
Design Revisions:
