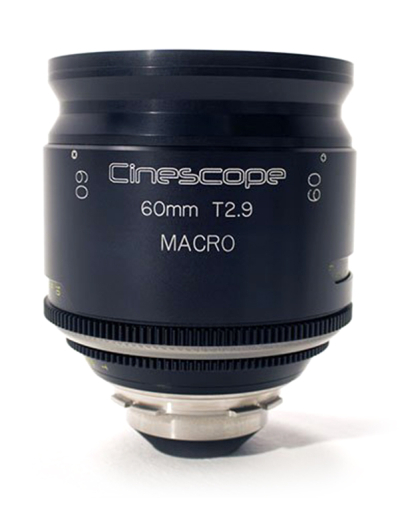

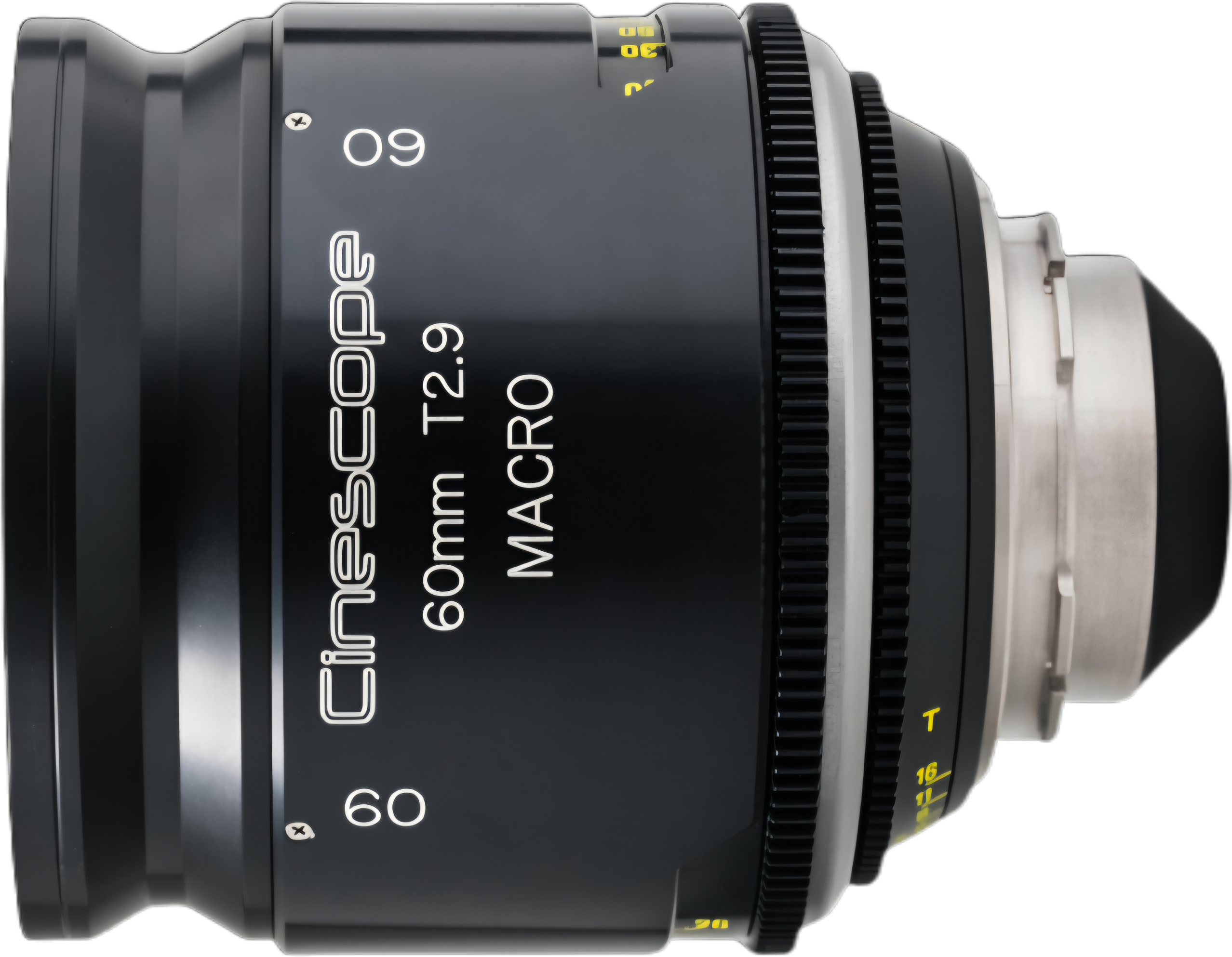

Cinescope Optics Leica Macro-Elmarit-R 60mm T2.9
Summary
These rehoused Leica R lenses have full frame coverage 36mm x 24mm, making the vast image circle cover almost all cameras and sensors. Such cameras include the Red Weapon 8k Helium.
Most of the lenses even cover the new Vista Vision sensor. We have have also designed a cam driven focus system and chassis style lens housing allow matte boxes and other accessories to be attached to the front of the lens without affecting focus movements.
The benefit of zero backlash and image shift give accurate dual focus scales that repeat on direction and change with the cam drive system, giving a wide spread of markings through the scale. A major selling point is that due to the complete redesign of the lens, all the lenses have an improved close focus.
Tech Specs
| Manufacturer | Cinescope Optics |
| Series | Spherical Prime |
| Model | Leica Macro-Elmarit-R |
| Focal Length | 60mm |
| Max Aperture | T2.9 |
| Min Aperture | - |
| Format | FF |
| Image Circle | ⌀36mmx24mm |
| Minimum Focus | 11in |
| Focus Rotation | ° |
| Iris Blades | - |
| Optical Design | - |
| Squeeze | - |
| Front Diameter | 110mm |
| Filter Thread | - |
| Focus/Zoom Rod | - |
| Native Mount | PL |
| Data Protocol | - |
| Length | 4.8in |
| Weight | 1.44kg |
| Body Telescope | - |
| Body Material | - |
| Focus Drive | Manual |
| Iris Drive | Manual |
| Zoom Drive | n/a |
History
Country of Origin: -
Release Date: -
Launch Price: -
Design Revisions:
